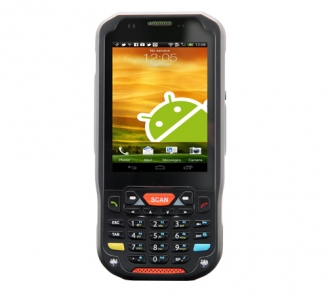

Point Mobile PM60

Rugged Android Scanner

RRP: $1099 ex GST

PM60 is 3.5 inch screen EDA with 3G HSPA+, IEEE 802.11 b/g/n, 1D/2D Barcode Scanner, 5MP Camera, Bluetooth Class II v.2.1 +EDR as well as GPS. PM60 can stand up to 1.5m (5 ft) along with IP65 sealing against water/dust. The PM60 is designed for outside-4-wall applications.

  • Optimize your workforce with maximum outdoor features
    PM60 is perfectly designed for outside-4-wall applications with full VGA (480x640), daylight readable & wide viewing angle 3.5” TFT-LCD. Seamless screen will provide comfortable touch and draw with fingertips more than ever.
  • Maximize power and speed with latest micro processor
    Adopting the latest Cortex A8 @ 1Ghz processor from TI (Texas Instrument) and 512MB/512MB(RAM/ROM), PM60 will give you maximum power and speed for your field workforces to conduct any complicated job process in the field.
  • Extend your business with two latest Operating System
    Now you can choose either Windows Embedded Handheld 6.5 and Android 4.2 Jellybean, and will have hassle-free without contraints between legacy system and any latest client softwares in your working environment.
  • Experience fast & stable wireless communication
    3.9G WWAN HSPA+ supports up to 5.76Mbps @ uplink and 14.4Mbps @ downlink. GPS assisted by telco carrier provides you visibility of your workforce location fast and accurately. Wireless LAN supports IEEE 802.11 b/g/n with speed up to 72.2Mbps under 2.4Ghz.
  • Enjoy fast barcode scanning and high resolution camera
    You can select either a laser scanner or an imager scanner as built-in option. Laser scanner supports all standard 1D symbologies. The imager has laser aimer for easy aiming and can read all standard 1D/2D barcode symbologies and GS1 Databar. You can also have great benefit for reading poor-printed and damaged barcodes. Unbeatable 5.0 mega pixel camera provides high resolution picture and video to help you free from any possible disputes with customers due to damaged items at the site.
  • Robust & rugged spec keep your TCO low and minimize down-time
    The PM60 is designed from the ground up for rugged applications. With its IP65 water/dust proof sealing, 1.5m (5 ft) repeated drops to concrete, and wide operating temperature range the PM60 stands up to most any demanding application.
PHYSICAL CHARACTERISTICS
Dimensions with battery 156.9 x 75.6 x 25.8 mm (6.1 x 2.9 x 1.1 in)
WEIGHT 305g (10.7) with 4,000mAh battery
ENVIRONMENTAL
OPERATING TEMPERATURE -20°C to 60°C (-4°F to 140°F)
STORAGE TEMPERATURE -40°C to 70°C (-40°F to 158°F)
RELATIVE HUMIDITY Non-condensing, 95%
RAIN & DUST PROOF IP65
DROP SPECIFICATION 1.5m (5 ft.) per MIL-STD 810G
TUMBLE SPECIFICATION 500cycle (1,000hit) @ 1m (3.3ft) tumble
ELECTROSTATIC DISCHARGE +/- 15 kV air discharge +/- 8 kV contact discharge
POWER
STANDARD BATTERY PACK 3.7V, 4,000mAh
IEEE 1725 Compliant, Li-Ion, removable, rechargeable
OPERATING SYSTEM
Windows Embedded Handheld 6.5 Professional
Google Android 4.2 Jellybean
MICRO-PROCESSOR
TI - Cortex A8 Processor 1Ghz
MEMORY AND STORAGE
MEMORY 512MB RAM
ROM 1GB NAND Flash ROM
User-accessible micro-SD cards up to 32GB SDHC
DISPLAY
3.5 in, 480 x 640 pixel (VGA), TFT-LCD, backlight (600NITs), Daylight readable, Wide viewing angle, resistive touch
STANDARD COMMUNICATION
Full speed USB 2.0 from either cradle or direct sync cable
RS232 (115 Kbps) from cradle
Integrated Camera
5.0 Megapixel fixed focus color camera with flash
Keypad Options
Numeric (27 key) or QWERTY (45 Key) with backlight
WIRELESS WWAN
UMTS Frequencies 800, 900, 1900, 2100Mhz
GSM/GPRS Frequencies 850, 900, 1800, 1900Mhz
Technology Class UMTS 3.9G HSPA+
Max speeds Uplink–5.76 Mbps; Downlink–14.4 Mbps
Antenna Internal
WIRELESS LAN
IEEE 802.11 b/g/n Data rates; 11, 54 and 72.2 Mbps
OPERATING CHANNELS 1 to 13 (2.4Ghz)
REGULATORY COMPLIANCE As per IEEE 802.11n
SECURITY WEP/WPA/WPA2 and more
AUTHENTICATIONS PEAP/MS-CHAPv2, EAP-TLS
WIRELESS PAN
Integrated Bluetooth Class II, Version 2.1+EDR
OPERATING CHANNELS 0 to 78 (2402-2480 MHz)
DATA RATES 1, 2, 3 Mbps
Global Positioning System
12 channel integrated GPS: assisted via WAN carrier: Network independent; accuracy within 3m
Accelerometer
Embedded accelerometer enables automatic or application-specific “screen rotation”
Ambient Light Sensor
Automatically adjust required display backlight to maximize battery life
INTEGRATED BARCODE SCANNER
1D Laser Scanner; supporting all 1D standard symbology & Postal code 2D Imager Scanner; supporting all 1D/2D standard Symbology including GS1 Databar
LED INDICATOR AND SCAN ALERT
INDICATOR 2 x dual color LEDs on front;
1) Power, 2) Warning, 3) Scan reading
SCAN ALERT Vibration
AUDIO SUPPORT
Supports VoIP, Built-in microphone and speaker
Wireless Bluetooth headset support
ACCESSORIES
STANDARD ACCESSORIES AC/DC power adaptor & country plug, Stylus pen & tether, Hand strap, Battery, LCD protection film, USB sync cable
OPTIONAL ACCESSORIES Single-slot cradle, 4-slot Cradle, Vehicle charger, Vehicle mount, 4-slot Battery Charger
REGULATORY APPROVALS AND COMPLIANCE
SAFETY EMC, UL, RF, Laser approvals
RADIO FCC, CE, KCC, ANATEL Marks
ENVRIONMENTAL RoHS & WEEE compliant
